Advanced Manufacturing Division

Holtec’s Advanced Manufacturing Division in Camden, New Jersey  incorporates the latest in fabrication machinery and information management software to enable precision manufacturing of large and complex weldments.

Slide
PlayPlay

Custom Equipment and Expert Services for the Energy Industry and Beyond

Equipment

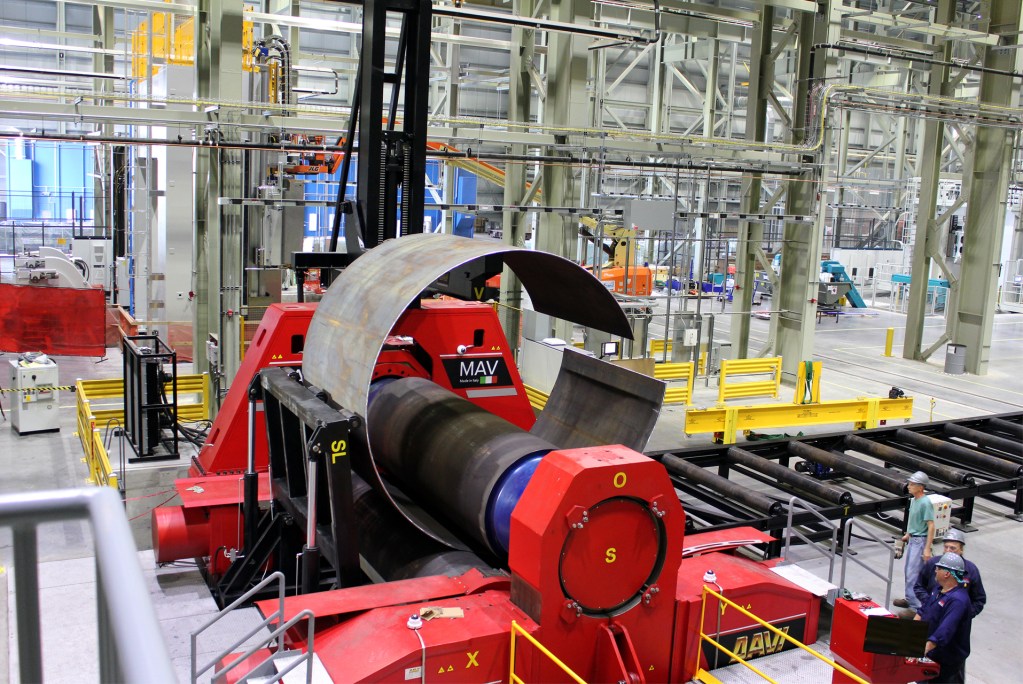

Davi Plate Roller

  • DAVI Model: MAV ZA-40 3 roll variable axis
  • Rolling Capacity at 60KSI material: Full width plate: 13’
  • Max plate thickness: 6.5”
  • Min. Inside Diameter: 60”
  • Bending Force: 5500 metric tons
  • Machine is equipped for Hot Rolling.
  • Max plate thickness: 10″

Davi Plate Roller

  • DAVI Model: MAV N-64
    • 3 roll variable axis
  • Rolling Capacity at 65KSI material:
    • Full width plate: 21’ 2”
    • Max plate thickness: 1”
    • Min. Inside Diameter: 135”
  • Bending Force: 580 metric tons

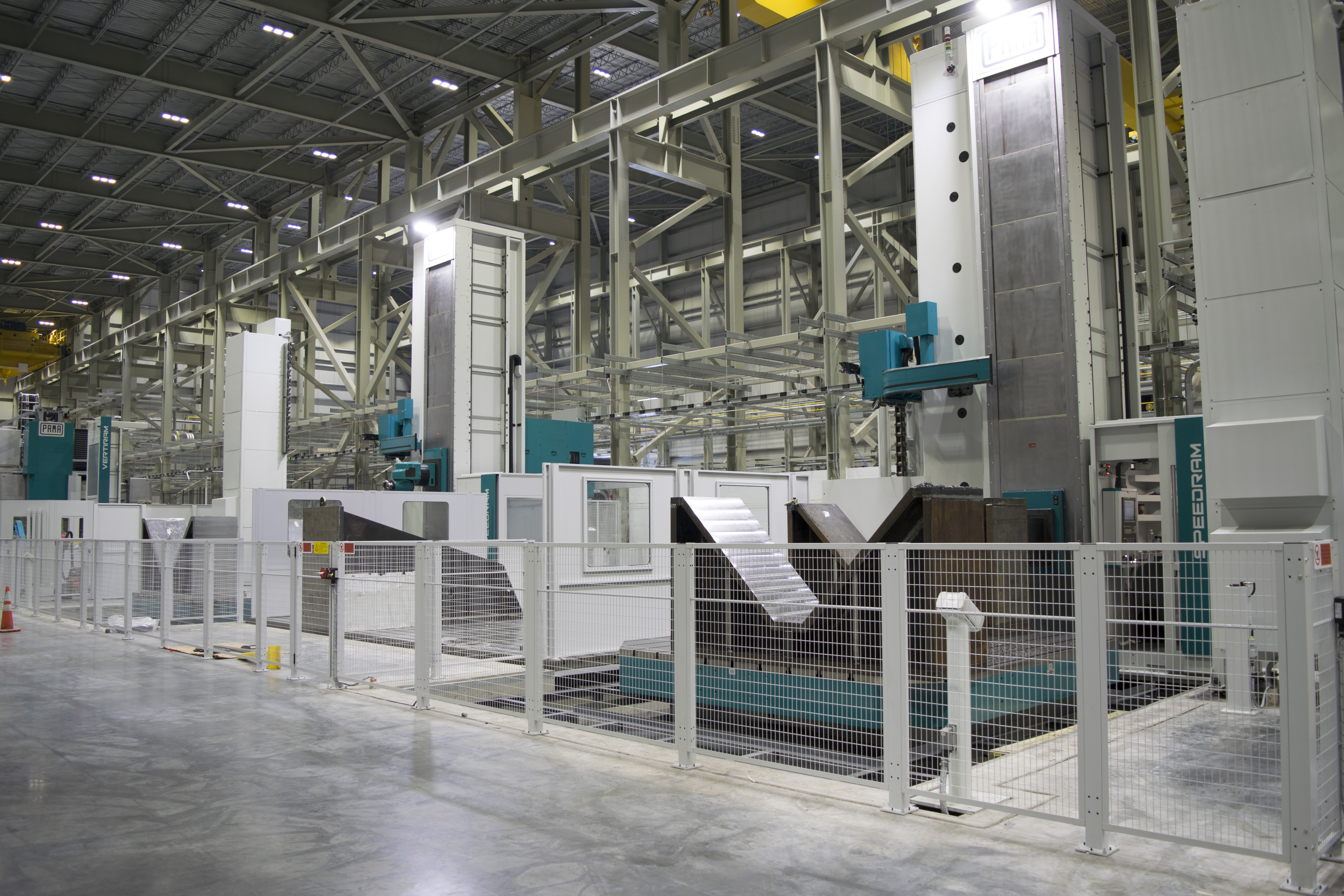

PAMA SpeedRam

  • Horizontal Dual Column Boring & Milling Machine
  • (2) PAMA Model: Speedram 3000
    • (2) Rotary Tables (157.5” square) with central machine plate 14.5’ x 28’
    • 6-axis Capability
    • 30” Deep Hole Drilling Attachment
    • Universal Milling Head
  • Cutting envelope:
    • 62’ X, 21’ Y, 8’ Z
  • Table Capacity: 100 T

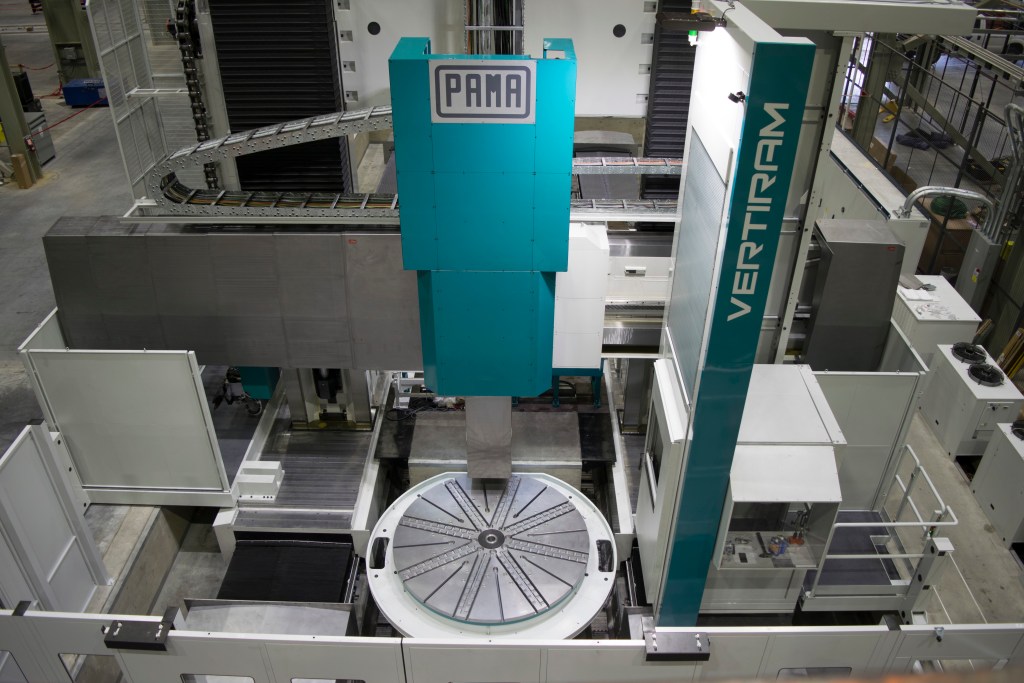

PAMA VertiRam

  • Gantry Type Vertical Machining Center
  • PAMA Model: Vertiram 3.600 HP GT5-axis Milling with 8’ diameter lathe table with 11.5’ swing.
  • Universal Milling Head (which provides 270° machining envelope)
  • Working range:Clearance Between Columns: 11.81’
  • Max. Clearance Under Spindle: 13.12’
  • Gantry Travel: 39’
  • Spindle Travel: 6.5’

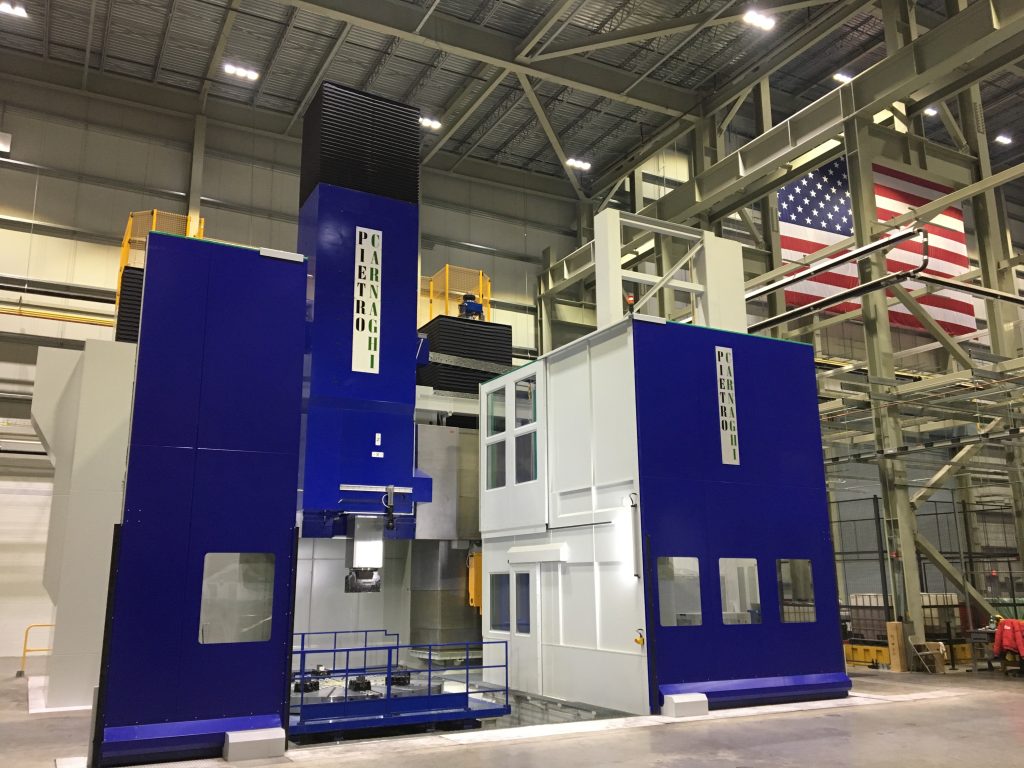

Pietro Carnaghi VTL

  • Vertical Turning and Milling Center
  • Pietro Carnaghi Model: AC 46 TM(Y) 4000
    • Double disk magazine for 9 accessories and 30 tools.
    • Universal Milling Head
    • Y-Axis table provides full milling capability.
  • Working Range:
    • Max Turning Diameter: 15’
    • Max Turning Height: 17’
  • Table Capacity: 100 T
  • Table Diameter: 157.5”

Tanaka Laser Cutter

  • Nissan Tanaka Laser Plate Cutter
  • Model: LMX VII Laser6kW resonator.
  • N2 and bevel cutting capabilities.
  • 12’ x 40’ fixed table
  • ¾” stainless steel max. thickness.
  • Rail extension 60’ cut length.
  • Material Handling System:Max plate size: 10’ x 20’ x ¾”
  • (16) shelf system.
  • Max shelf weight: 8,050lbs.

Blast & Paint Booths

  • Wheelabrator Air Blast Room20’ W, 20’ H, 110’ L
  • Blast Media Recovery System
  • Aquest Industrial Cross Draft Spray Paint Booth20’ W, 20’ H, 103’ L
  • Partition door to split booth. (2) 50’ sections for simultaneous operation.

Hankook Vertical Turning Lathe

  • Maximum Swing & Turning Dia: 118”
  • Max Turning Height: 78.7”
  • Table Diameter: 98”
  • Max. Workpiece Weight: 33,000
  • Axis Travel:Horizontal X-Axis – 78”
  • Vertical Z-Axis – 59”

Digital Radiography Weld Inspection System

  • Captures high resolution digital X-ray images of welds
  • Better clarity and resolution than film processes
  • Images are stored, backed up and shared electronically
  • Automated system indexes containers to take images along full length of welds
